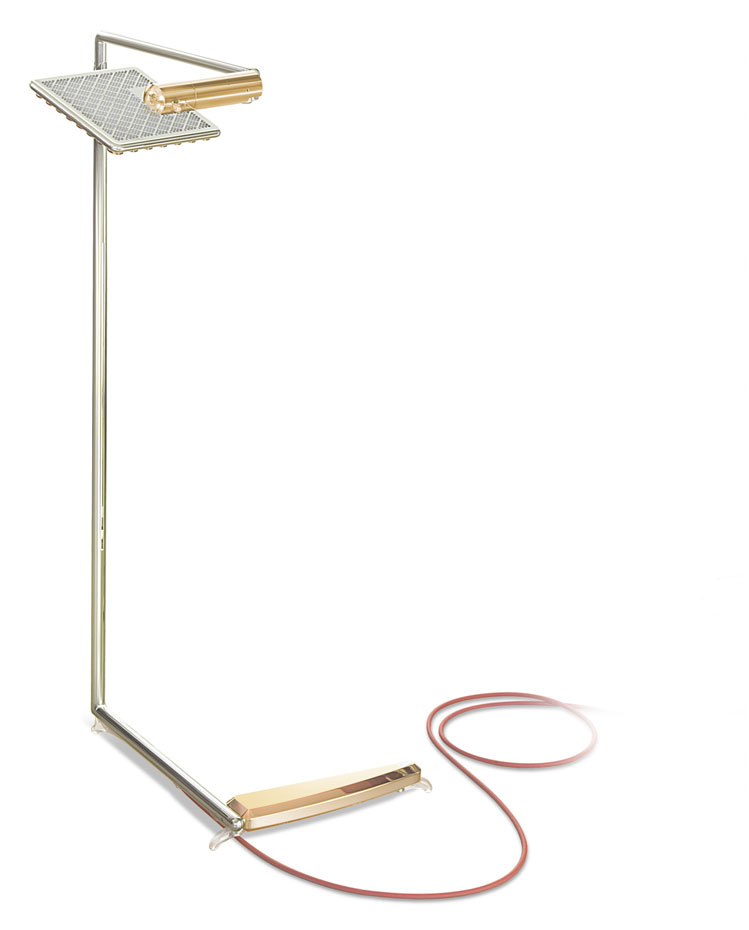

Low Profile Luminaire

Stainless steel, brass, aluminum.
31 - 42" adjustable height 787 - 1067mm.
Arc base and socket shown in 24k gold plate.
Shield P rotates 360° horizontally on dual vertical pivot control tube. Stem main vertical rotates 700° between stops. Arc counterweight may be attached left or right.

*LED version 36 volt DC:
New planar P shield is milled to a slim 5/16" and holds 48 high brightness 3500K Nichia LEDs. A magnetic low brightness louver prevents glare. A programmed microprocessor provides thermal regulation and wide range PWM dimming.

*36 Volt DC Power
*The included switching power supply delivers 36v DC
from standard US 110-125 VAC lines. (As well as international voltages 90 to 240 VAC)
* Cord from power source to Power Supply.
*125 VAC Cord: 6' Black (UL)SVT 75°C.
* Cord from Power Supply to Luminaire:
* 36v DC Cord: 9' slender red or linen colored braid.

Uses less than 20w current for task light.
Superior to 75-100w incandescent sources.
