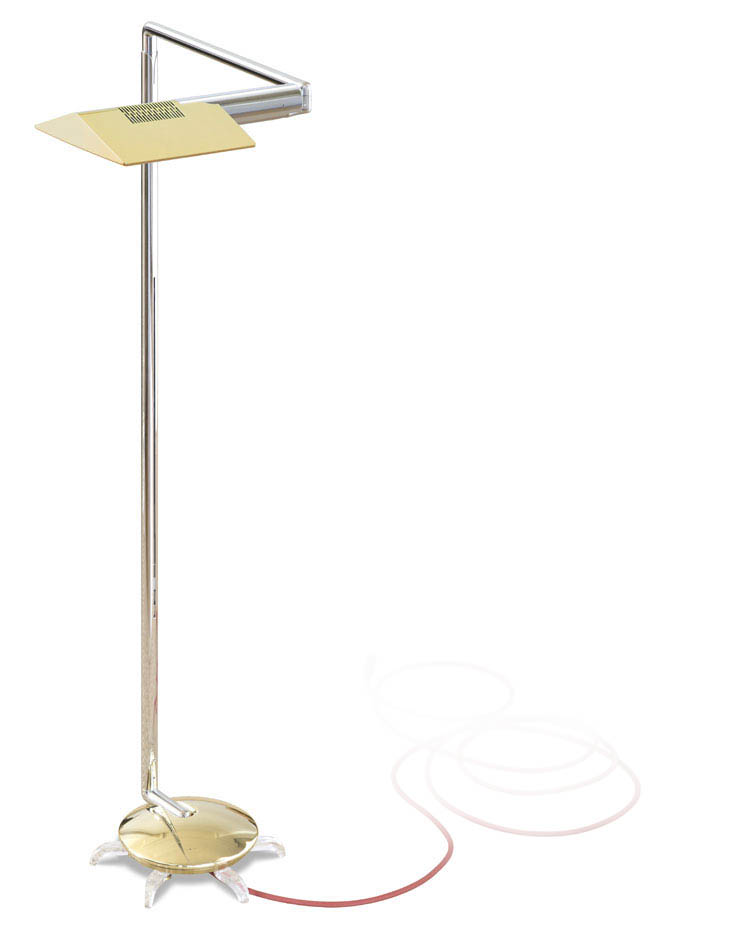

Low Profile Luminaire
No Loop version shown

Stainless steel, brass, aluminum
31 - 42" adjustable height 787 - 1067mm
Dome base and shield shown in 24k gold plate.
WV shield rotates 360° horizontally on dual vertical pivot control tube. Stem with dome base rotates 700° between stops. Dome base folds 90° for compact shipment.

36 Volt DC LED Shield:
New WV LED shield, slimmer than the original
and holds 48 high brightness 3500K Nichia LEDs.
A magnetic low brightness louver prevents glare.
A programmed microprocessor provides thermal
regulation and wide range PWM dimming.

36 Volt DC Power :
*The included international power supply delivers
36v DC from standard US 110-125 VAC as well as
international voltages from 90 to 240 VAC.
* Cord from power source to Power Supply.
*125 VAC Cord: 6' Black (UL)SVT 75°C.
* Cord from Power Supply to Luminaire:
* 36v DC Cord: 9' slender red or linen colored braid.

Uses less than 20w for diffuse task light.
Without 75-100w incandescent heat issues.

© Cedric Hartman 2009
All rights reserved

Price List
Back to Timeline

Adjustable stance feet at widest setting
