CEDRIC HARTMAN

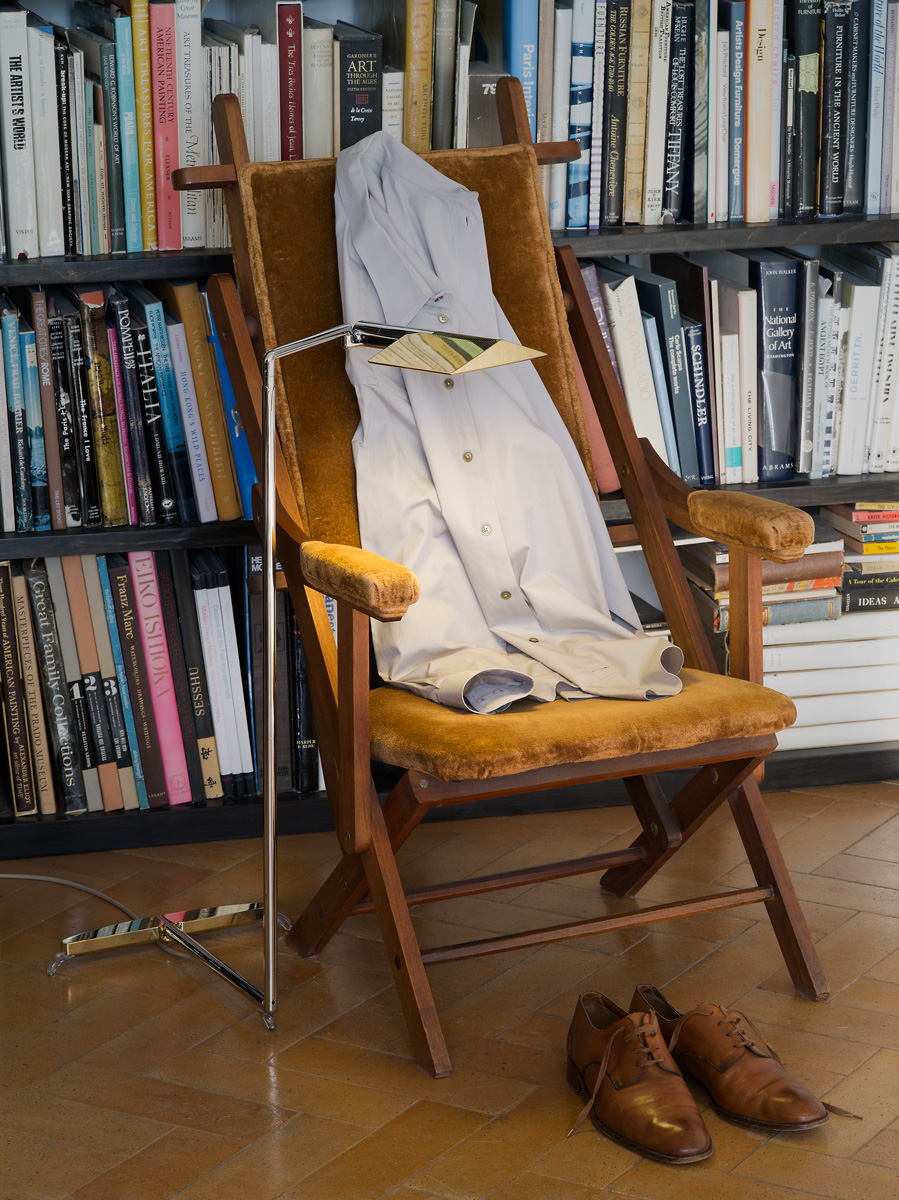

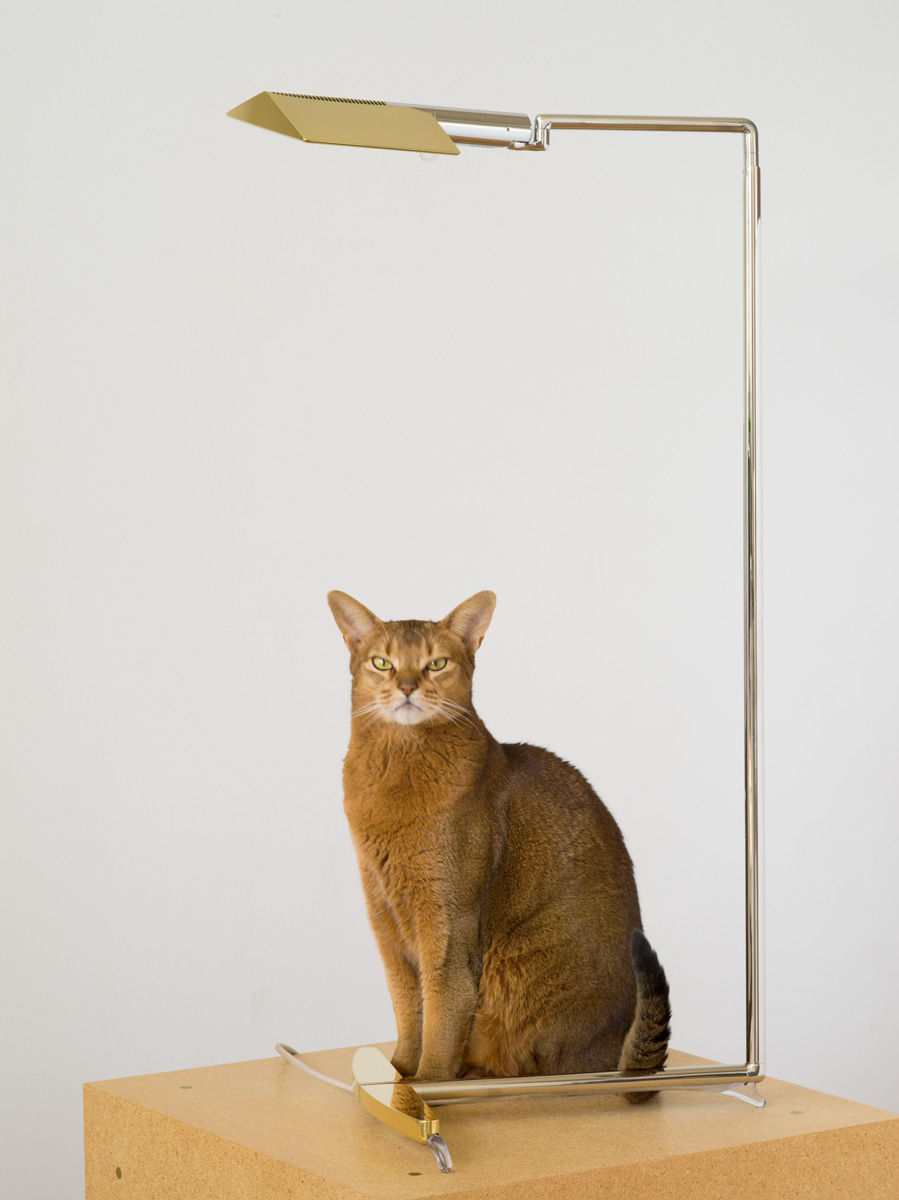

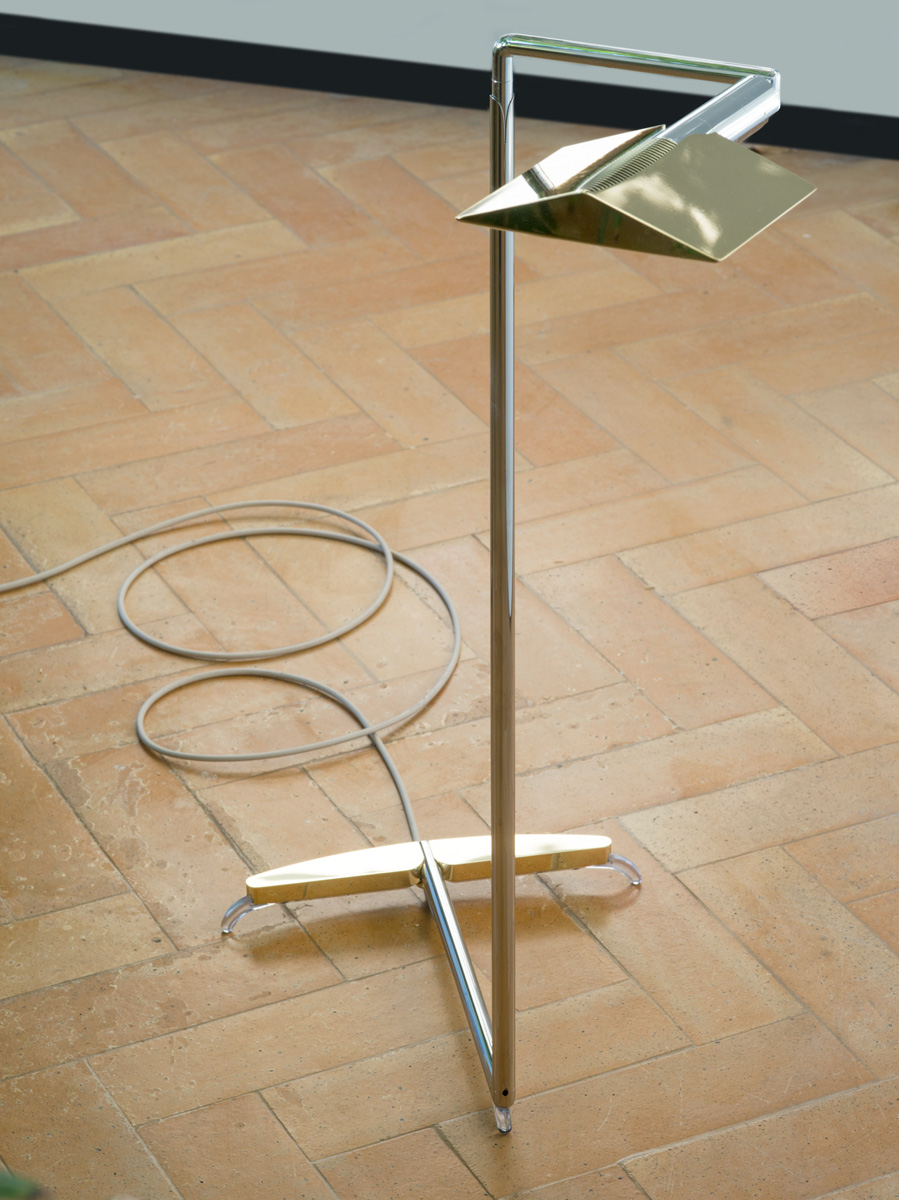

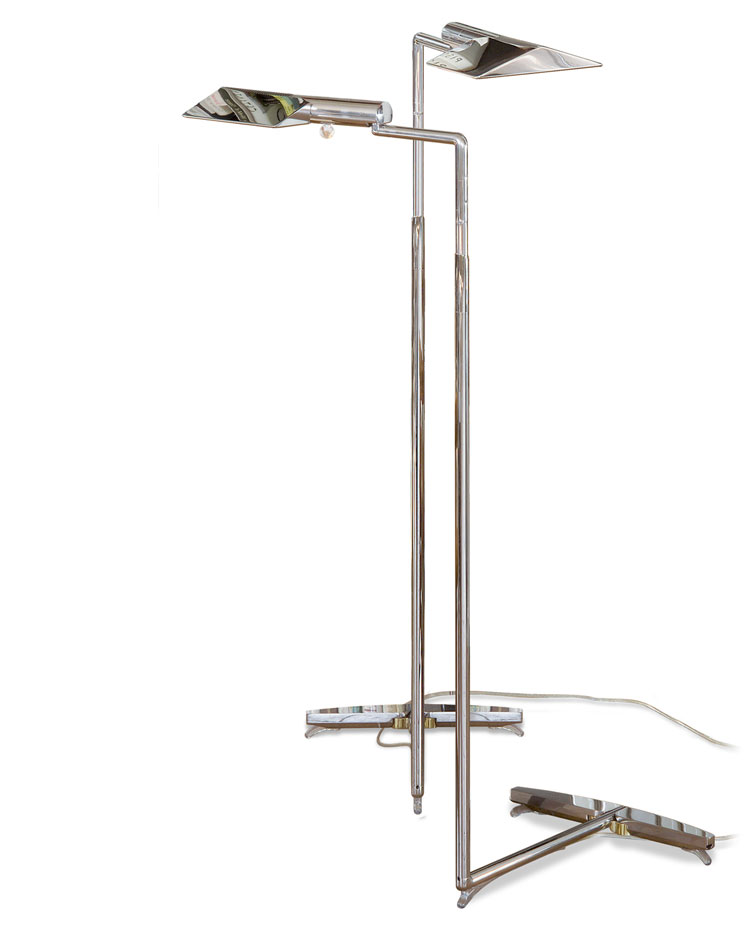

Low Profile Luminaire

Stainless steel, brass, aluminum
31 - 42" adjustable height 787 - 1067mm
Slim milled redesign of WV
Reflector shield rotates horizontially 360°
Socket tube has 190° vertical pivot
Main vertical stem rotates 670°
Base detaches for storage + shipping

*LED 36 volt DC:
New W V LED shield, slimmer than the original
and holds 48 high brightness 3500K Nichia LEDs.
A magnetic low brightness louver prevents glare.
A programmed microprocessor provides thermal
regulation and wide range PWM dimming.

36 volt DC LED Power :
*The included international power supply delivers
36v DC from standard US 110-125 VAC as well as
international voltages from 90 to 240 VAC.
* Cord from power source to Power Supply.
*125 VAC Cord: 6' Black (UL)SVT 75°C.
* Cord from Power Supply to Luminaire:
* 36v DC Cord: 9' slender red or
linen colored braid.

Uses less than 20w for diffuse task light.
Without 75-100w incandescent heat issues.
