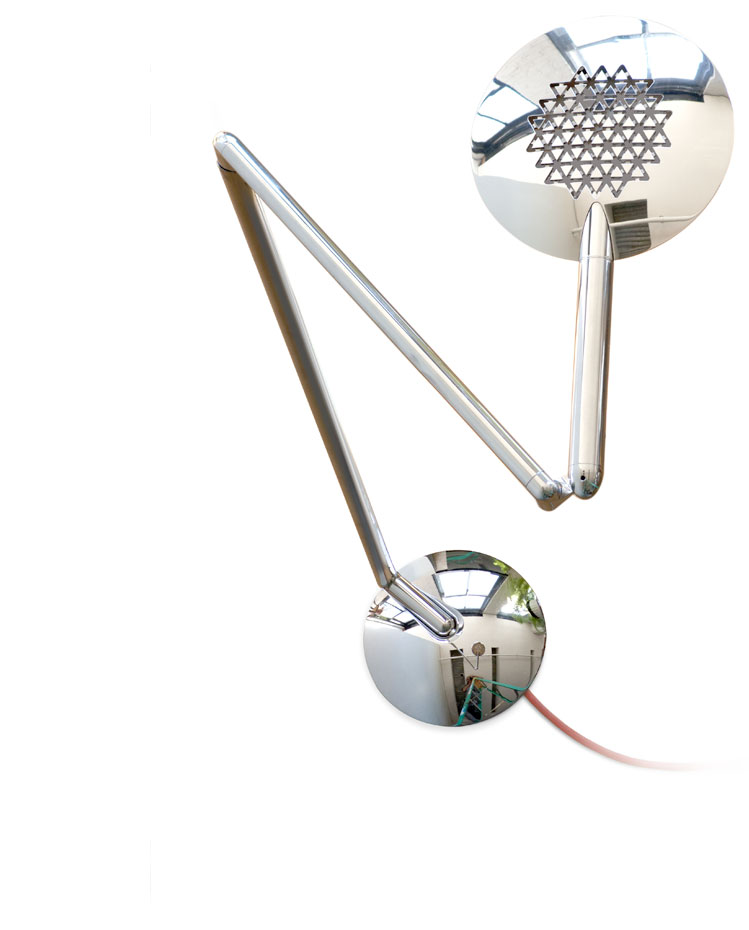

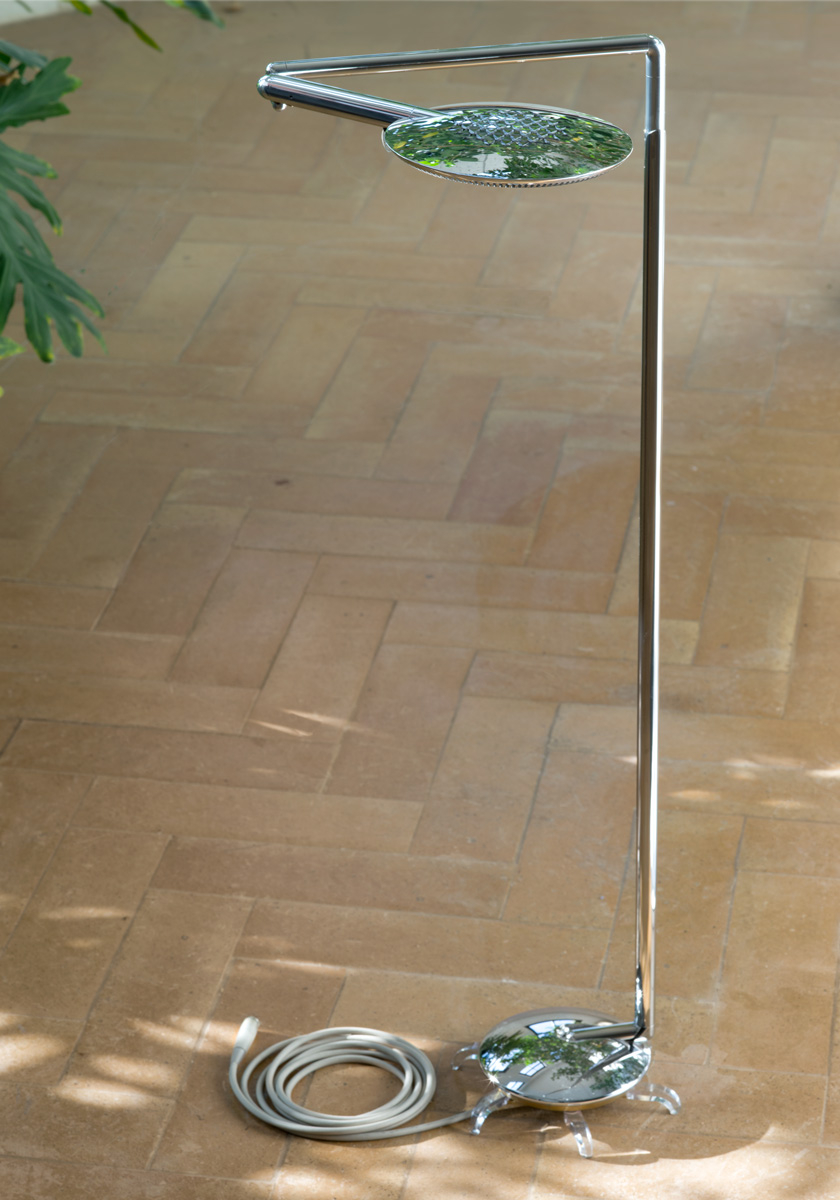

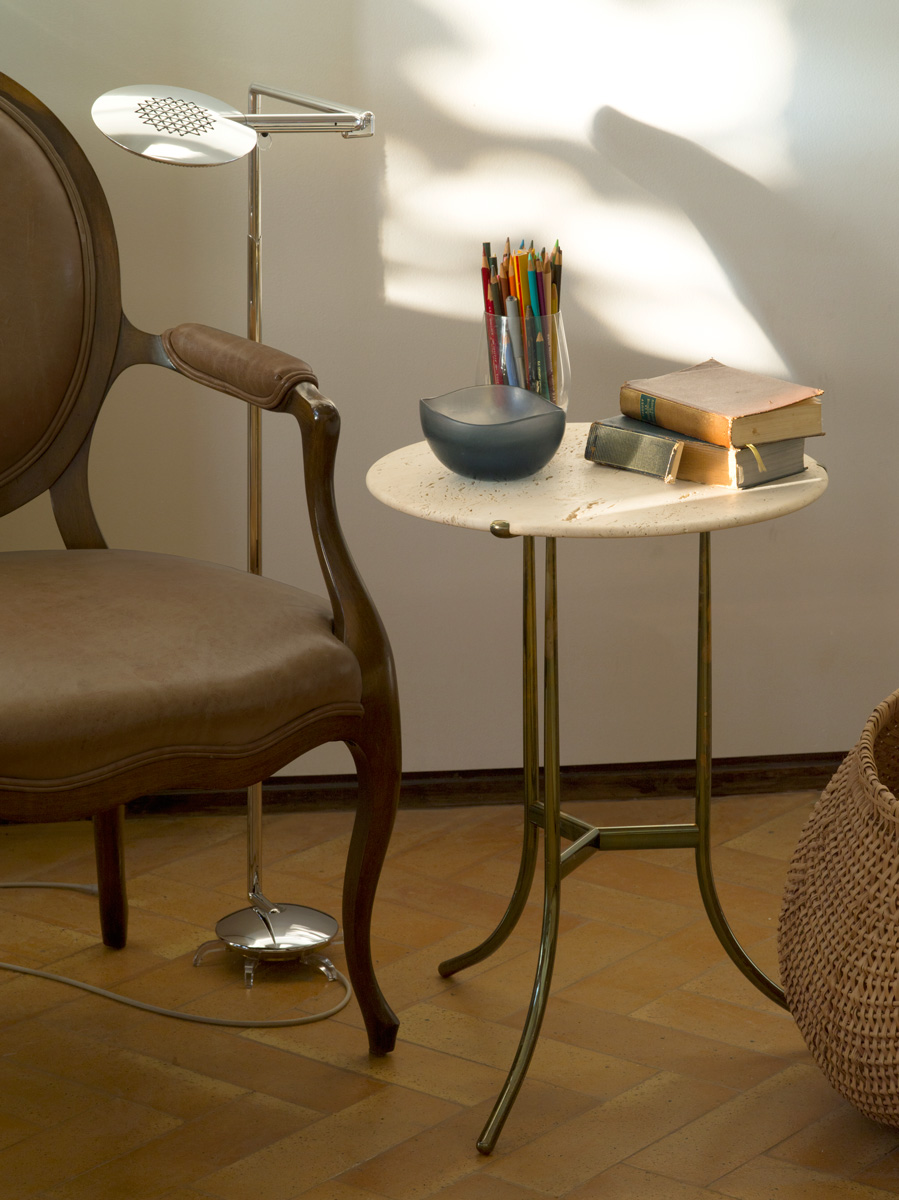

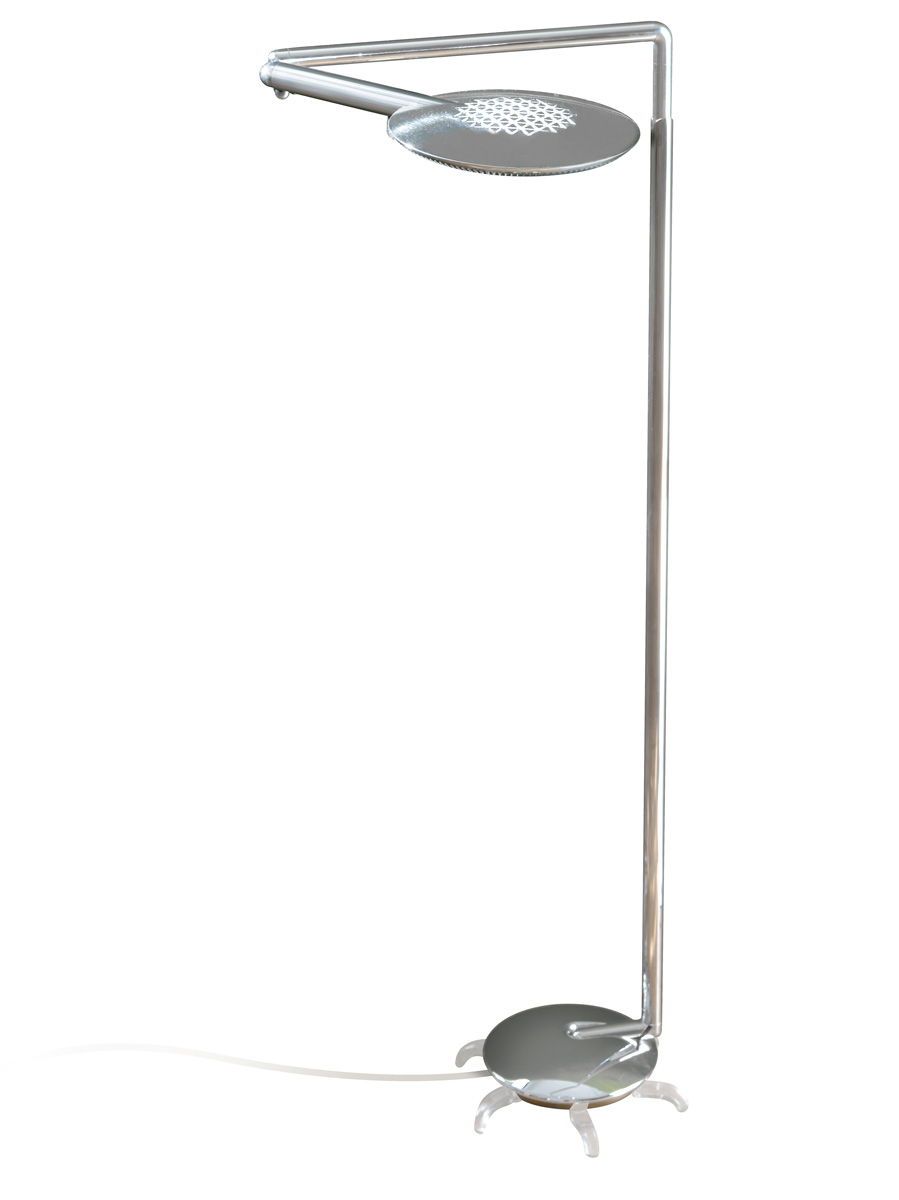

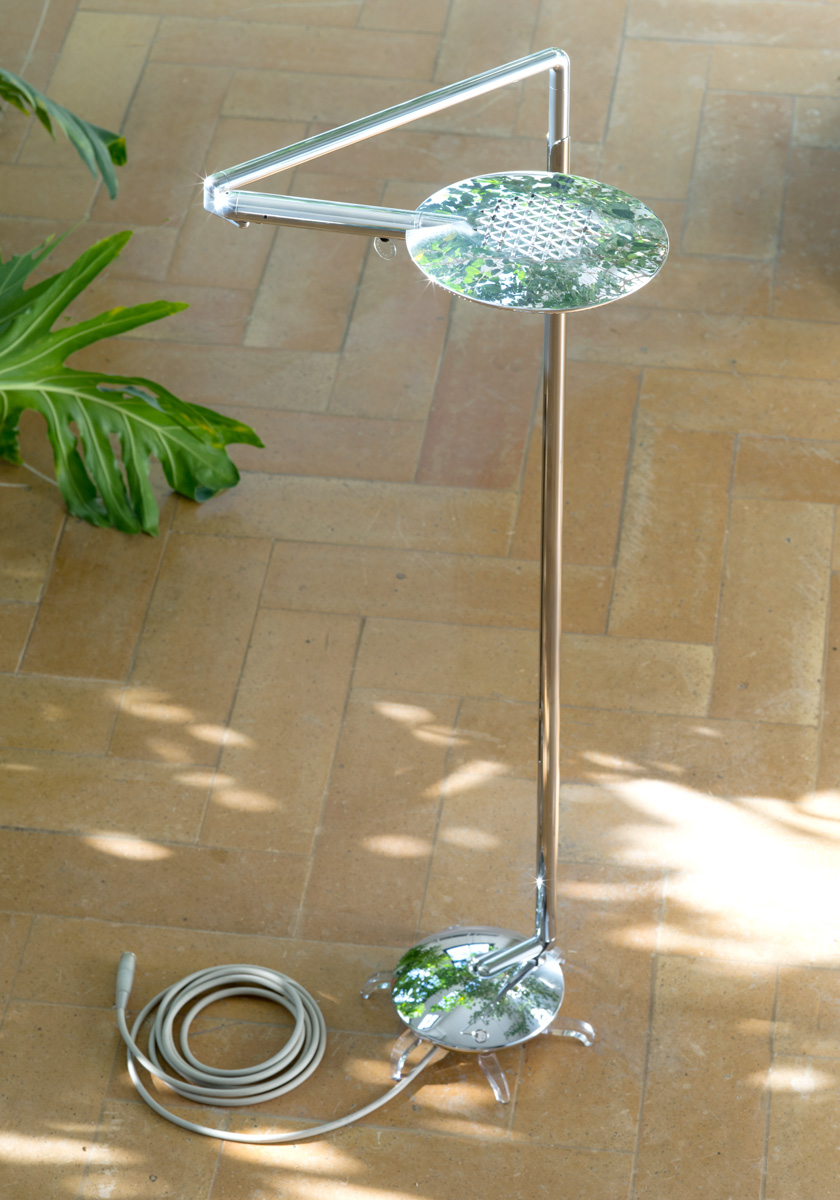

Low Profile Luminaire

Stainless steel,
brass, aluminum
31 - 42" adjustable
height 787 - 1067mm.
Dome base and shield
shown in 24k gold plate.
LK shield rotates 360°
horizontally on dual
vertical pivot control tube.
Stem with dome base
rotates 700° between stops.
Dome base folds 90°
for compact shipment.
Adjustable stance feet:
Retractable geared feet move in
or out to support very small ( 5" diam )
base on hard floors to medium pile
carpet. Inquire for deep pile/shag conditions.
Special strategies may be available.
36 volt DC LED Shield:
Holds 48 high brightness 3500K Nichia LEDs.
A magnetic low brightness louver prevents glare.
A programmed microprocessor provides
thermal regulation and wide range PWM
dimming.
36 Volt DC Power: The included international
power supply delivers 36v DCfrom standard US
110-125 VAC as well as International voltages from
90 to 240 VAC. Cord from power source to
Power Supply: 125 VAC Cord: 6' Black (UL)SVT 75°C.
Cord from Power Supply to Luminaire:
36v DC Cord: 9' slender red or linen colored braid.
Uses less than 20w for diffuse task light.
Eliminates incandescent 75-100w heat issues.
