CEDRIC HARTMAN

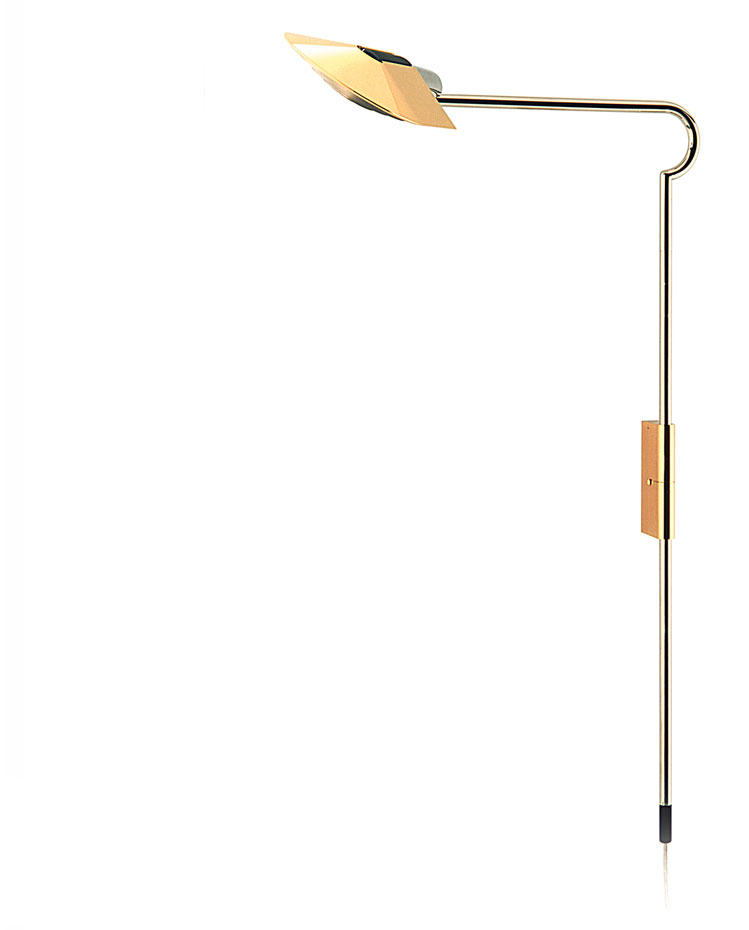

Vertical Surface Mount Luminaire

Finish shown: Lacquered Brass with Stainless & Chromium
Lamp: 60w tubular inside frost 60T10/IF/120VAC
Dimmer: 150 watt, 120 VAC, full-range, electronic
ST Reflector Axial Rotation: 140° around socket housing
Pivot Socket Vertical Rotation: 180° swing
Stem Vertical Rotation: approx. 200°, as restricted by mount plane
Height Adjustable: Stem moves inside Stem Block. A movement range
of 17" [431.8mm] is possible with Stem Block top surface positioned
a minimum of 24" [609mm] above floor or any other obstruction
Highest Reflector Position over Stem Block Top: 24", to socket top [609mm]
Stem Block Dimensions: 3 x 4.5 x 75" [76.2 x 114.3 x 4.78mm]
Length Horizontal: 23.05", mount surface to tip of ST Reflector [585.4mm]
(inluding *Optional Mount Plane)
Arm Swing, Maximum Radius: 20.72" stem axis to tip of ST Reflector [526.3mm]
*Optional Mount Plate: 3 x 4.5 x 188" [76.2 x 114.3 x 4.78mm]
(provided for additional support on unbacked surfaces)
Specifications and design subject to change without notice.
