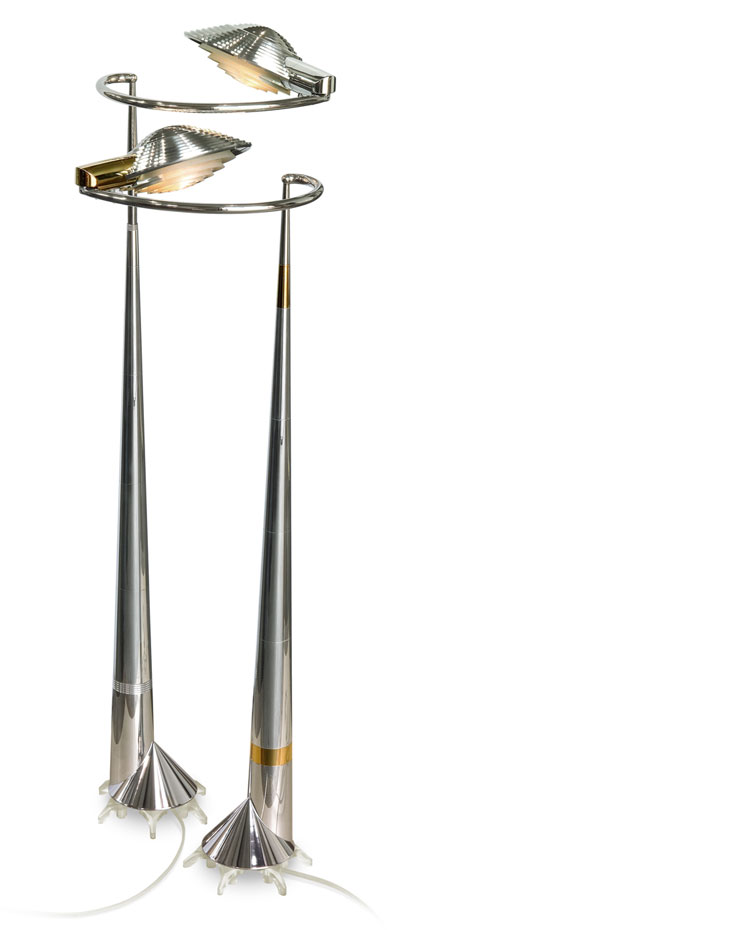

Low Profile Luminaire

Right and Left hand versions
Height, floor to column top:
38.5-44.5" adjustable [977.9-1130.3mm]
Horizontal maximum extension, column center to
outer reflector edge: 19.9" [505.5mm]
Diameter of conical base: 5" [127mm]
Diameter of stance at talon feet: 6.94" [176.3mm]
CZ Reflector shield:
75w double envelope halogen,
Philips BC75BT15/HAL/W, 120VAC
Dimmer: 150w, full-range, electronic
Finish materials as shown:
Versions 1 & 2: Stainless steel volute arm,
chromed brass base with aluminum column.
Version 2: Pivot socket & inset column details
of heavy 24K gold plate.
Cord: Two conductor 18-2 SPT-2 PVC105º C.
in clear silver with polarized plug.

© Cedric Hartman 1979, 1983, 2003
All rights reserved
